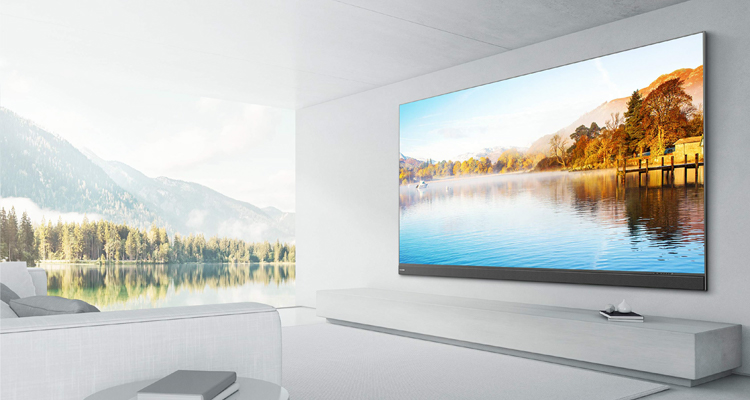

MAXHUB introduced the LM220A18 Integrated LED Wall, the largest member of MAXHUB’s Raptor Series. With its 3840 x 2160 screen resolution, the 220-inch diagonal LM220A18 delivers native 4K in an LED with an integrated video processor with support for PBP (Picture By Picture) functionality. This separates the screen in half and displays output from two different source devices simultaneously on the left and right sides of the screen, along with PIP (Picture In Picture) capability that separates the screen into two parts (one source on the main screen and the other in an inset window).
The MAXHUB LM220A18 is really a three-in-one design that provides everything presenters might require in one package. The control unit integrates a sending card, the Android OS card and the video processor. The receiving unit incorporates the power supply, the receiving card and the hub board while the power unit includes the power supply, amplifier and relay provisions.
The MAXHUB LM220A18’s audio capability includes an integrated 30-watt internal audio amplifier and dual loudspeakers.
The MAXHUB LM220A18 has screen-sharing for up to four windows, an integrated Android 9.0 operating system and built-in sharing features for any presentation or communication task. Android 9.0 also provides enhanced BYOD (Bring Your Own Device) sharing of content, resulting in even greater flexibility for meetings. Further, the new LM220A18 offers upgraded Wi-Fi capability to 2.4G and 5G dual network duplex.
MAXConfig software delivers system control. The system supports instant remote and reverse control via tablet, smartphone or PC along with remote power, brightness, signal source volume and window size management. Real-time annotations via one’s personal computing device facilitate easy collaboration while intuitive connections to third-party control systems are easily accomplished.
