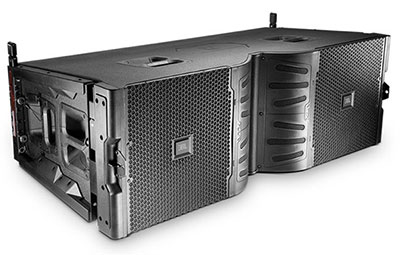

JBL Professional, a subsidiary of HARMAN, has just announced the VTX V25-II, the successor to the V25 line array loudspeaker. It features a brand-new waveguide for what JBL Pro says is improved long-throw performance, improved wavefront control and improved power matching with the companion Crown I-Tech 4x3500HD four-channel amplifier.

VTX V25-II maintains the same outstanding horizontal coverage performance of the original V25 and current V25 owners can upgrade their cabinets to the new V25-II performance standard in a matter of 10 minutes with the VTX-V25-WG-UK Waveguide Upgrade Kit.

The new V25-II waveguide features design improvements that were motivated by the highly-effective VTX V20 waveguide and differs from its predecessor with revised internal acoustical path geometry and double the number of acoustic transmission paths. In addition, the V25-II waveguide’s exponential geometry assists with wavefront expansion while providing improved wavefront control and line source array coupling in the vertical plane at higher frequencies.

The V25‐II waveguide provides better acoustic loading conditions for JBL’s D2 dual diaphragm, dual voice coil compression drivers, resulting in over 10 dB higher sensitivity above 10 kHz. This sensitivity increase means that less high frequency shelving equalization is required in order to achieve the same acoustic output response and, as a result, there is a significant increase in amplifier headroom. Limiter thresholds can also be adjusted so there is less peak limiting activity and reduced distortion. All of this combines to provide higher maximum SPL and improved system packaging density since there is a better power match when V25‐II is used with Crown Audio I-Tech 4x3500HD four channel amplifiers.

Improved polar characteristics and wavefront control are also obtained with the new waveguide which translate to improvements in long-throw performance and overall, V25-II offers more even coverage, front to back. Improvements can also be found underneath and behind the array, where V25-II focuses significantly less high-frequency energy.

Also new at Prolight & Sound, JBL is introducing the VTX V25-II-CS, which includes the optional V25-CS-K compression suspension kit pre-installed at the factory and is intended for use with VTX V25-VTC Vertical Transporters and accessories.
