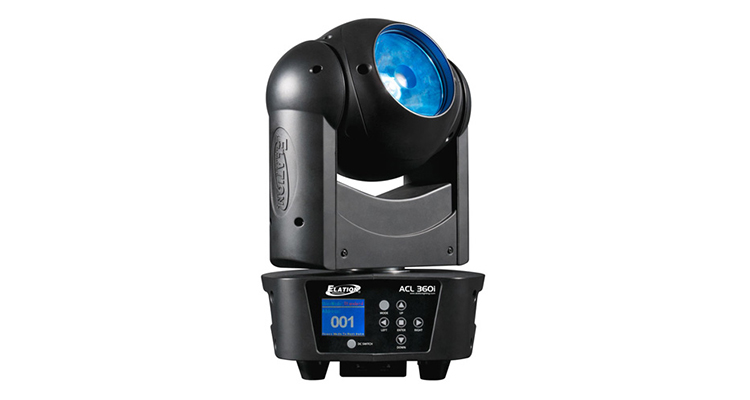

Elation’s New ACL 360i Debuts at ISE

elation_acl_360i_rt-500-0216Elation Professional announces the launch of the new ACL 360i, a single-beam moving effect luminaire with the intensity of a tight ACL beam that is perfect for quick-moving beam looks, pinspotting or stunning large motion effects when used in larger configurations. It is the latest and the smallest high-output luminaire in Elation’s ACL Series of narrow-beam LED effect lights.

A single 60W RGBW LED combines with an advanced collimator optic lens to produce a dense and uniform 4° color-changing beam. Frost lens options of 10 and 45 degrees (included) can be employed to soften and spread the beam for color washing applications. Useful in a variety of applications including pinspotting table centerpieces or in larger arrays to create dynamic presentations, its compact size allows it to easily rig with one hand.

The ACL 360i is phenomenally fast with lightning-quick motors and continuous 360° pan and tilt movement that adds an intense level of energy to any show. Yet the fixture can also move subtly slow and accurately focus thanks to its smooth 16-bit movement. Strobe effects and selectable dimming curve effects add to the design possibilities and a selection of color macros is available for fast programming. The ACL 360i delivers an output of 30,601 LUX @ 6.6′ (2 meters) yet consumes a low 110 watts of max power.

The ACL 360i is controllable via 3 DMX modes (16/18/20 channels) and the unit is also RDM (Remote Device Management), KlingNet or Art-Net controllable. It comes with a host of standard features like 5-pin DMX In/Out connections, powerCON In/Out connections and RJ45 Ethernet In/Out connections (KlingNet / Art-Net). A 6-button touch control panel with a full color 180° reversible menu display makes for easy navigation through DMX and manual settings and an auto-sensing power supply covers worldwide voltages and frequencies.

Compact at only 13.0” (330 millimeters) tall and 11.5 pounds (5.2 kilograms), the ACL 360i operates flicker free for use in TV and other broadcast applications and a long LED life rating means service intervals are few and far between. The ACL 360i offers all the benefits of LED such as greater reliability, less maintenance and increased energy efficiency, according to Elation Professional.

Here are all the specs.
