OLED-TV, Where are You?


By Ken Werner

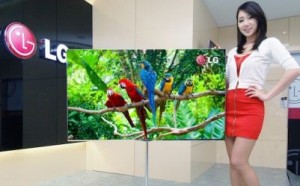

By my count, LG missed three promised deadlines last year for the commercial introduction of its 55-inch OLED-TV set. Samsung, apparently never happy with the idea of bringing OLED-TVs to market before their time, grudgingly said it, too, would introduce a 55-inch OLED-TV in 2012, but when LG missed its final deadline of the year you could almost hear the sigh of relief rising over the Samsung Electronics headquarters in Suwon.

Now, LG says it has taken 100 pre-orders in Korea for its 55-inchers at a unit price of roughly $10,000, and said at CES the sets will be available in the U.S. market starting in March for about $12,000. The company announced earlier this week that it would invest KRW 706 billion (about US $648 million) in a Gen 8 OLED fab, to be installed in its P9 plant in Paju. LG Display (LGD) will start spending money on the line in Q1’13, and expects volume production to start in H1’14, with a monthly input capacity of 26,000 sheets. LGD will use the RGBW color-by-white process it obtained from Kodak when it bought Kodak’s OLED business.

LG should be able to put 6 55-inch panels on each sheet, which might sound like the line will produce a lot of OLED-TVs. And someday it will. But there are persistent, if highly unofficial, reports, that LGD’s manufacturing yield is running at about 10 percent, with plans to increase it to 30 percent by repairing some of the defective units. That is still a dismal yield, and it will keep prices high until yields improve and manufacturing costs decline.  And they will, eventually.

In fact, we have lived through this story before.  When Samsung began making cell-phone-sized OLED displays, it took more time than anyone – including Samsung – expected before yields rose to acceptable levels and prices came down to acceptable levels, and OLED market projections from the leading market intelligence companies were revised downward multiple times.

See related  LG Expands Commercial ProBeam Projector Line With New 4K UHD Short Throw Projector

Late  last year DisplaySearch projected that 500 OLED-TVs would be shipped worldwide in 2012, 5000 in 2013, 1.7 million in 2014, and 4.8 million in 2015. Now, Displaybank is putting those numbers at 1600 for 2013 and 1.7 million in 2015. And I wouldn’t take bets that those numbers won’t be revised downward before all this is done.

When it comes to OLED-TVs, we have all spent so much time looking at LG and Samsung, that Panasonic and Sony caught many of us by surprise when each of them showed a 56-inch 4K OLED-TV at CES this January. That diagonal and pixel count are unusual enough in the OLED world that you might expect the panels are coming from the same place, and that is partly true. The backplanes are coming from the Gen 6 fab of Taiwan’s AUO. One report said the backplane was LTPS; another that it was IGZO. It is worth noting that AUO has done a great deal of R&D on oxide TFTs over the years. On the other hand, while LTPS is certainly not impossible on a Gen 6 substrate (Samsung has been doing it on its Gen 5.5), it is not easy and it does not scale readily to Gen 8 (although Samsung has been planning to do exactly that for its first Gen 8 OLED plant). I will speculate that IGZO is the more likely approach from AUO, and it is the approach that will ultimately drive OLED prices down faster.

The front planes are different. Panasonic used a printing process for at least some of the OLED front-plane layers, while Sony used vacuum thermal evaporation. Printing of some sort is likely to be a significantly lower-cost approach, but development has been going on for many years.

So where are our OLED-TVs? They’re coming, which is what I said last year.
