Voyage Audio Now Shipping Spatial Mic Dante 360 Ambisonic Microphone

voyageaudio spatialmic dante

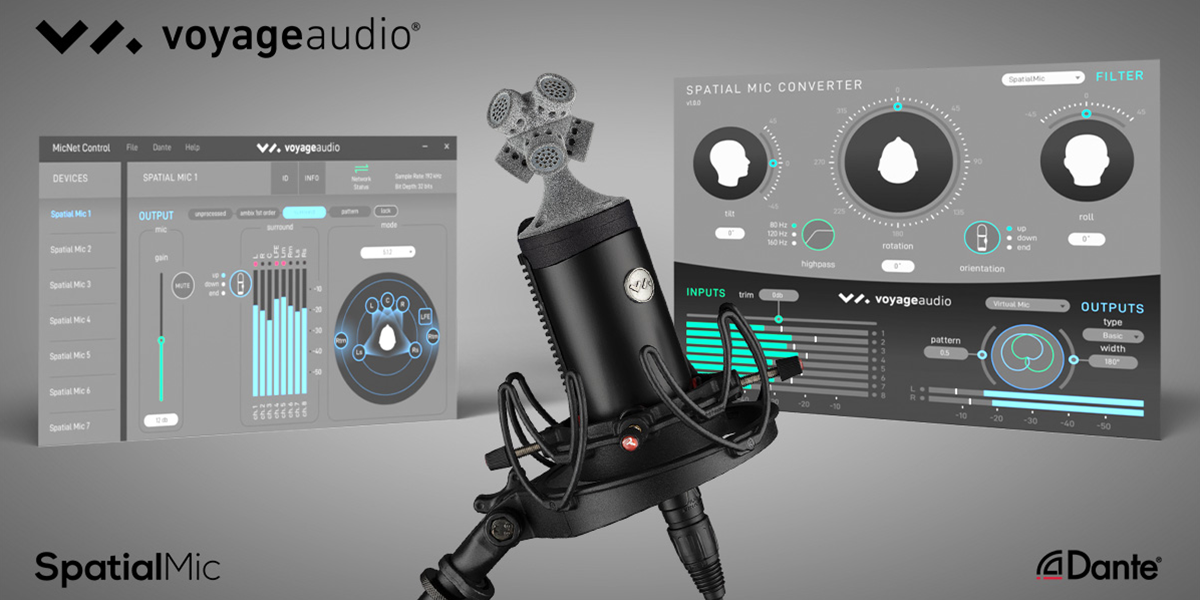

Voyage Audio announced that its Spatial Mic Dante, a hybrid analog-digital second order ambisonic microphone, is now shipping.

With Audinate’s Dante audio networking built-in, Voyage Audio says there is no need for complex multimicrophone and preamp setups — plug in an Ethernet cable and focus on recording immersive audio for VR, surround sound, ATMOS, spatial and stereo music, concerts and live broadcasts. With the flexibility to output complex polar patterns of your choice and aim around the soundfield, Spatial Mic Dante brings the freedom to experiment with sound in completely new ways.

Included with Spatial Mic Dante is the new MicNet control app that lets you remotely adjust connected microphones on the network. Using filters created in an anechoic chamber, especially for Spatial Mic Dante, the Spatial Mic Converter plug-in (VST & AAX) now works for post-processing the entire Spatial Mic family — just select which mic the recording was created with from the new dropdown menu. Download the plugin and newly released example sessions for free on the Voyage Audio website and explore audio in 3D.

Spatial Mic Dante Key Features

  • Dante audio network interface up to 32-bit / 192 kHz
  • AES67 mode up to 32-bit / 48 kHz
  • 8 capsules for 2nd order ambisonics
  • Capsule SNR of 78dB-A and 136 dB Max SPL
  • Configurable output for unprocessed, surround sound, ambiX & virtual mics with pattern controls (continuously variable from omni to cardioid to figure-8)
  • Power Over Ethernet (PoE)
  • Cirrus Logic ADC & THAT Corp analog front end
  • Individual calibration for balanced array

MicNet Control Key Features

  • Remote Control of analog stage and internal DSP processing
  • Change between unprocessed, 1st order ambisonics, surround feeds (5.1, 5.1.2, 7.1) and virtual mic mono or stereo pairs with pattern control and make-up gain.
  • Control multiple mics on the network from a single instance of MicNet Control
  • High-pass filter, gain trim and comprehensive level metering
  • Available for both Windows and Mac

Spatial Mic Converter Plugin Key Features

  • Encodes unprocessed audio from Spatial Mic to first or second order ambisonics in AmbiX or Fuma formats, Surround Sound (up to 7.1.4 ATMOS) or virtual mic patterns including mid-side for mono or stereo output.
  • Multiple Output filters — created using measurements from an anechoic chamber
  • Change aim and orientation
  • High pass filter, gain trim and comprehensive level metering and individual controls depending on which output stage is selected
  • Free download as VST3 and AAX

Spatial Mic Dante (software included) — $2,899USD MAP

Learn more about Spatial Mic Dante here:

Where to buy Spatial Mic Dante:

Spatial Mic Dante Recording Sessions For Download:
