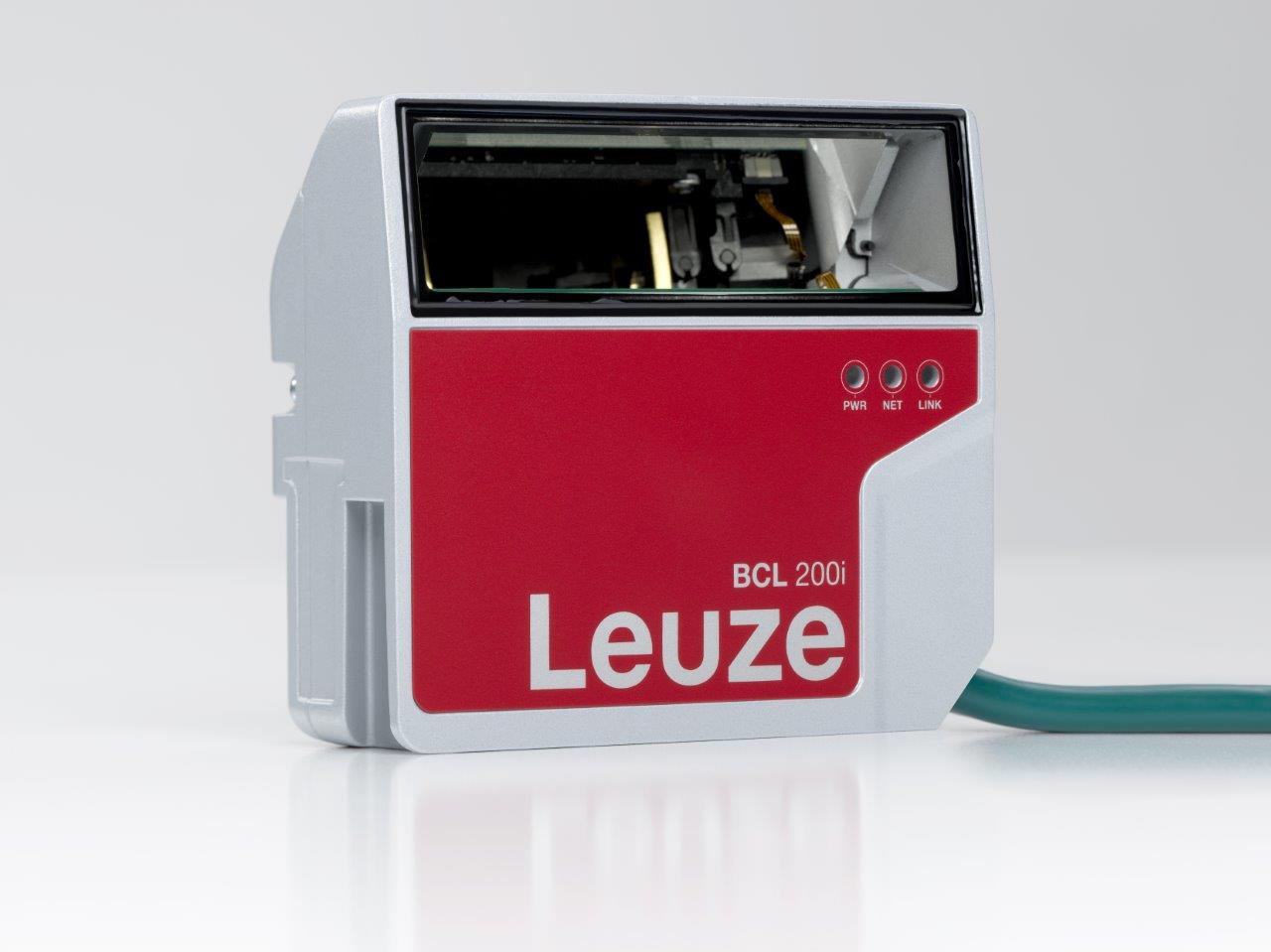

A new addition to the BCL series: the stationary 1D bar code reader 200i.
Leuze is expanding its portfolio of stationary bar code readers with the introduction of the BCL 200i. Designed specifically for conveyor systems, the new BCL 200i is a 1D bar code reader with integrated industrial interfaces and simple PROFINET configuration. The device can be configured directly in the control via the GSDML file.
The compact design of the BCL 200i makes it particularly suitable for applications with limited installation space such as on or between conveyor lines. In addition to the small dimensions, the location of the cable outlet on the side of the device and its dovetail mounting system make it even easier to install in space constrained applications.
The new BCL 200i is particularly suited to guided container identification.
Ideal for container and tray identification
This latest addition to Leuze’s BCL range of bar code readers is particularly suited to the detection of 1D codes on trays and containers regardless of whether the bar code is printed vertically or horizontally. The device features integrated Ethernet TCP/IP and PROFINET interfaces and a web-based configuration tool enables remote diagnostics from anywhere in the world.
Additionally, the inclusion of integrated code reconstruction technology (CRT) enables the BCL 200i to read 1/2
bar codes with small line heights as well as damaged or smudged labels. With the aid of the CRT decoder, bar codes can also be read at a large twist angle. The resulting decrease in no-reads significantly increases system availability and decreases down-time.
The new BCL 200i is particularly suited to guided tray identification.
Activation without additional sensor system
The new device also incorporates automatic reflector activation (autoReflAct), enabling activation without an additional trigger sensor system. This is achieved by directing the scanner with reduced scanning beam towards a reflector mounted across the conveyor. If the reflector is covered by an object such as a container with a bar code label, the scanner activates the read procedure. The read procedure is completed as soon as the scanner can see the reflector again.
