Limitless AV Transforms 745 Thurlow Conference Center with Extron Technology

745ThurlowCS 1

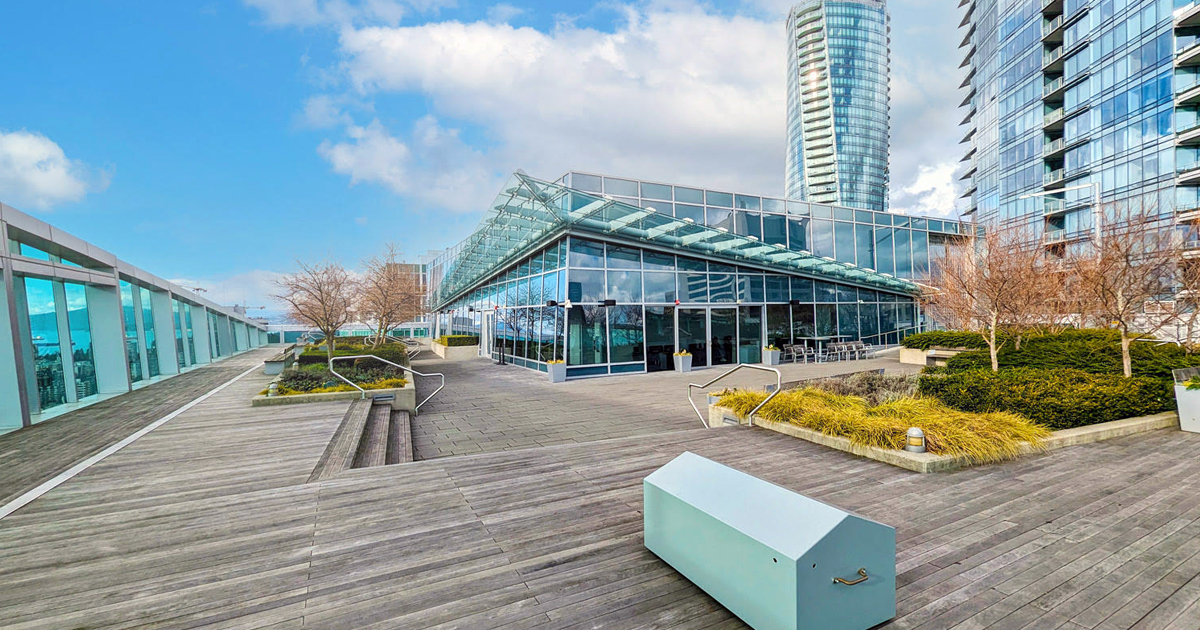

745 Thurlow is a 400,000-square-foot state-of-the-art office building in the heart of the Vancouver, British Columbia business district. Among the building’s many amenities, tenants enjoy exclusive access to a two-room conference center on the 25th floor with an adjacent lounge and rooftop patio. Unfortunately, the original AV integrator left the system unfinished and difficult to use. Limitless AV, a premier systems integrator headquartered in Vancouver, Canada, was brought in to upgrade the aging system. The company’s responsibilities included responding to the many calls from users for support and keeping the existing technology going until the AV system could be upgraded. The team at Limitless AV designed and deployed a system that could support a wide range of connectivity and be easy for the tenants to use without assistance. They selected Extron switching, signal extension, audio, and control solutions to accomplish these goals.

“We were confident that we could deliver the best possible solution with Extron technologies because we knew they would deliver the products on time and support us a hundred percent,” says Barton Moxness, President of Limitless AV. “We had to be very creative in how we leveraged the infrastructure to minimize construction costs while also maximizing system functionality and ease of use.”

A DTP CrossPoint 84 4K 8×4 Scaling Presentation Matrix Switcher provides all of the signal routing for audio and video in the boardrooms. The smaller English Bay Conference Room is equipped with a single 86″ 4K display while the larger Stanley Park Conference Room features dual displays of the same size. Limitless AV included Bluetooth connectivity, wireless presentation capabilities, conferencing cameras, and ceiling microphones in both rooms so users can conduct meetings over Zoom or Microsoft Teams. The video input signals are scaled automatically to make every presentation as impressive as it can be. The building’s owners are delighted to see their investment already returning dividends in the shape of even happier tenants.

While tenants have always had reasons to love the rooftop conference center, the AV system was not one of them for at least the first 10 years after the building’s construction. The original integrator left the system unfinished. There were button panels that didn’t work. Some system functionality was never enabled. Several devices included in the original design were never installed or were installed but still need to be connected.

The AV technology that was in place lacked the functionality needed by users. For instance, the source devices in the system output 720p or 1080p video, but there was no way to upscale these signals. And the system lacked automation. Setting up the simplest presentation required help from an on-site security officer or property manager, personnel that changed frequently due to promotions or attrition. Unsurprisingly, these issues caused frustration for users and property managers alike.

Limitless AV, a premier systems integrator headquartered in Vancouver, was brought in to manage and maintain the aging system. The company’s responsibilities included responding to the many calls from users for support and keeping the existing technology going until the AV system could be upgraded.

After a few delays, due in no small part to the COVID outbreak, Limitless AV was awarded the contract to design and install a new system from the ground up, complete with automation and advanced technologies to enhance the experience of everyone who uses the conference center.

“This project had all of the challenges that come with retrofitting an existing facility,” says Barton Moxness, President of Limitless AV. “We had to be very creative in how we leveraged the infrastructure to minimize construction costs while also maximizing system functionality and ease of use.”

See related  Extron Introduces UCS 504 for BYOD and BYOM in Small, Mid-Sized Meeting Spaces

745Thurlow2

The design team at Limitless AV sought to deploy a system that could support a wide range of connectivity and be easy for the tenants to use without assistance. They selected Extron switching, signal extension, audio, and control solutions to accomplish these goals.

A DTP CrossPoint 84 4K 8×4 Scaling Presentation Matrix Switcher provides all of the signal routing for audio and video in the boardrooms. The smaller English Bay Conference Room is equipped with a single 86″ 4K display while the larger Stanley Park Conference Room features dual displays of the same size.

Limitless AV included Bluetooth connectivity, wireless presentation capabilities, conferencing cameras, and ceiling microphones in both rooms so users can conduct meetings over Zoom or Microsoft Teams. Multiple HDMI interfaces are provided throughout each room so users can connect their own laptops or other source devices. The video input signals are scaled automatically to make every presentation as impressive as it can be.

Audio system capabilities were expanded by adding an Extron DMP 64 Plus DSP processor, providing support for wireless microphones in the larger Stanley Park Conference Room and on the outdoor patio. In addition, system designers were able to set up three distinct audio zones in the conference center: the conference spaces, the corridor, and the patio. This enables discrete control and fine-tuning of each area, as well as accommodating a variety of sound system applications.

The DTP CrossPoint matrix switcher’s integrated IPCP control processor makes centralized AV system control possible. It eliminates the need for a separate controller in the rack. A TLP Pro 1025M 10″ TouchLink Pro Touchpanel mounted to the wall in each room makes it easy to control all the audio, video, and integrated room components at the touch of a button. Limitless AV modified an Extron GUI design theme to create a fully customized user interface that reflects the QuadReal Property Group’s branding and features the 745 Thurlow building logo. The interface is so intuitive that users no longer have to call someone for help to start their meeting, and they have complete control of the system.

745Thurlow4

The two conference spaces can be set up individually or combined to create one large room that seats up to 80 people. An Extron ECM S10 Partition Sensor uses IR to sense the position of the movable wall between the two rooms. Based on its status, the control system automatically places the room into either Separate or Combined mode. There is also custom control for unique and personalized room configurations, when required.

A TouchLink Touchpanel mounted in the corridor outside the rooms is used for selecting audio zones and to adjust the volume in the overflow areas and on the patio. Limitless AV created separate zones for when separate indoor and outdoor events run concurrently.

Feedback on the new system has been very positive. “We were confident that we could deliver the best possible solution with Extron technologies because we knew they would deliver the products on time and support us a hundred percent,” says Moxness. “Users are finding the system extremely easy to use, so calls for support have been reduced to nearly zero.” The building’s owners are delighted to see their investment already returning dividends in the shape of even happier tenants.

To see a list of all the products used, go here: https://www.extron.com/
