Draco tera compact UNI — Universal Matrix Switch Supporting KVM, SDI, and USB 3.0 Sources
The Draco tera compact UNI matrix switch provides the option to switch any combination of 3G-SDI, USB 3.0 and ultra high definition KVM using an SFP modular design. Each port is designed around the IHSE flex-port technology which allows any port to be defined as an input or output. Frame sizes are available for 8, 16, 32, and 48 in 1RU with 64 and 80 ports in 2RU. Each frame includes an internal controller card that can be managed with many different 3rd party control systems such as Crestron, HRS, DNF and LAWO’s L-S-B software. Frames come standard with dual power and optional API modules for SNMP.
In addition to the standard compact UNI options, customized models can be configured using special purpose Embrionix modules for HDMI to SDI, SDI to HDMI, MADI, and ST-2022-6 for broadcast IP distribution.
Matrix Grid Board — Custom IO Card for the Draco tera enterprise, Allowing Interconnects Between Multiple Frames
The new matrix grid I/O card allows up to 8 sources to be distributed between matrix frames using a single duplex fiber connection. This card can be installed in any slot on a Draco tera enterprise frame to create a distributed KVM switch design. As with all IHSE tera enterprise switch frames, signal formats such as DVI, HDMI, DisplayPort, USB, audio and RS-232 can be combined and distributed through this card. These KVM matrix systems enable the transmission of signals and switching between computers and remote consoles, and for larger or decentralized installations, several matrices can be connected together using the Matrix Grid to form a decentralized, virtual super-matrix.
The new dual-port Matrix Grid board replaces the standard I/O board previously used for matrix interconnection and dramatically reduces cabling required between them. The Matrix Grid board saves considerable cost and wiring effort over other available solutions.
Draco ultra DP

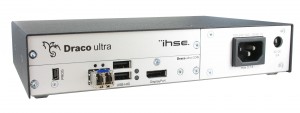

IHSE’s Draco ultra DP is the first 4K DisplayPort KVM extender with a 60-Hz refresh rate in full color depth. The device constitutes a new generation of digital KVM signal extension using the innovative Lightweight Image (LICI) codec, developed in cooperation with Fraunhofer Institute for Integrated Circuits. This revolutionary coding technology ensures brilliant image quality at the highest video resolutions with outstanding color accuracy (deep color ready).
The Draco ultra DP extender allows the operation of CPUs from a remotely located workstation including DisplayPort monitor, keyboard and pointing device over a pair of fiber cables. Transfer of fully-digital video is supported in 4K resolutions up to 4096 x 2160 and 3840 x 2160 at a real 60-Hz refresh rate and full color depth (24 bit, 4:4:4). The KVM extender also supports audio transmission via the DisplayPort interface, eliminating the need for additional audio modules, enabling playback of the audio signal on monitors with integrated loudspeakers. Integration of optional Draco vario upgrade modules for digital audio input and output as well as data signals, such as USB 2.0 and RS232 is also possible.
The Draco U-Switch enables parallel switching of USB 2.0 data and USB-HID signals to multi-monitor workstations via keyboard commands, mouse movement or push buttons. Switching in this way produces a more comfortable and efficient working environment.
The Draco U-Switch is a perfect solution in any environment where multiple displays connected to different CPUs must be managed simultaneously. IHSE developed the Draco U-Switch to allow users to perform fast and accurate mouse actions across multiple screens without the need to manually change keyboard and mouse devices or connections.
