HARMAN Professional Solutions Debuts JBL VTX A12 Line Array Loudspeaker

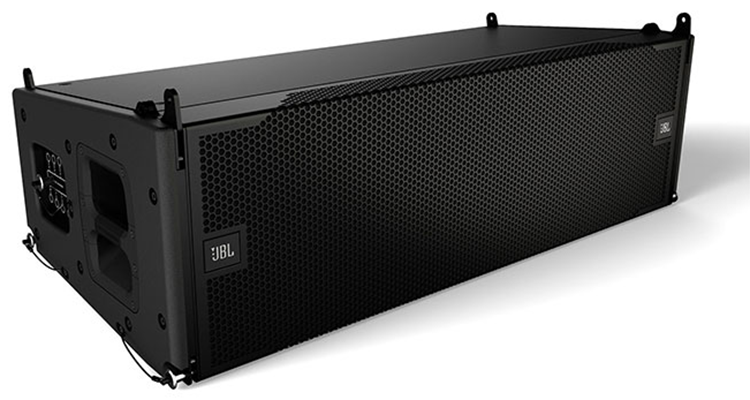

HARMAN Professional Solutions today introduced JBL by HARMAN VTX A12 line array loudspeakers, a completely redesigned solution for mid- to large-size touring productions and high-end fixed installations. Featuring entirely new and proprietary transducer and high-frequency waveguide designs, innovations in the rigging and suspension hardware, and refinements to the physical aspects of the cabinet, JBL VTX A12 addresses the most important needs of tour sound professionals and represents a renewed commitment by JBL to the tour sound community.

The VTX A12 loudspeaker was designed from scratch to address the unique challenges of rental companies, front-of-house engineers and tour sound production crews. All VTX A12 accessories are designed to be lightweight, durable and sized to fit both USA and International truck dimensions simplifying transport and logistics.

VTX A12 features a new high-frequency (HF) section with three uniquely designed drivers that combine the HF phasing-plug and waveguide into one part, yielding better tolerances and increased sensitivity above 6 kHz, while reducing distortion and overall weight. A newly designed Radiation Boundary Integrator (RBI) combines four 5” mid-frequency drivers into the high-frequency waveguide and provides a smooth horn surface for the high frequency section.  A lightweight 12” low frequency woofer (LF) features a fourth-generation Differential Drive design, new dual NEO dual-coil magnet arrangement and a host of proprietary JBL technologies for increased excursion, power handling and sensitivity. These elements combine to deliver a system with the highest output per weight, great low-frequency extension, and 90 degree directivity down to 300 Hz.

VTX A12 also features an updated exterior. The full-face grill design protects the loudspeaker components and helps the system achieve a higher Ingress Protection rating (IP55). Even more extensive weatherization is available if desired. The full-face grill also reduces the number of exposed components, allowing the loudspeaker to be finished in a variety of color options to better suit fixed install applications.

See related  Alcons Audio Intros Tiny Subwoofer, the BF121

JBL VTX A12 will be available in April 2017. Here are all the specs.
