FSR to Roll Out Range of New Electronics Products at InfoComm 2015
At this year’s InfoComm, FSR is introducing a variety of new products, including the DV-MFMV-74 and DV-MFSS-71 scaling switchers; DV-HSW4K-41, DV-HSW-21A and DV-MFSW-21A HDMI switchers; the HD-HPC-SP-Tx and HD-HPCWP-Tx additions to the company’s HDBaseT product family; the relaunch of its FLEX IO-16 I/O Interface Unit and a sneak peak at significant upgrades and design changes to the Digital Ribbon Cableseries. The new products are:

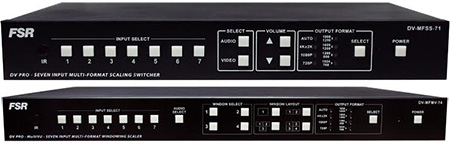

- DV-MFMV-74: DV PRO – MultiVU – Seven Input Multi-Format Windowing Scaler – The DV-MFMV-74 is a 7×1 seamless windowing switcher that has seven multi-format inputs (four HDMI, two DisplayPort and one VGA/RGB/YPbPr) and one HDMI out that supports scaled resolutions up to 4Kx2K 30hz. The DV-MFMV-74 allows users to show up to four of the inputs on the same screen simultaneously in a single, dual, triple or quad screen layout. Each input also has audio inputs available via captive screw terminals. The one-rack unit high windowing switcher can be controlled from the front panel, via RS-232 or IP via the integrated GUI Control. The DV-MFMV-74 MultiVU 7×1 Windowing Switcher integrates with FSR’s HuddleVU FLEX Collaboration Systems.
- DV-MFSS-71: DV PRO – Seven Input Multi-Format Scaling Switcher – The DV-MFSS-71 is a 7×1 Scaling Switcher that has seven multi-format inputs (four HDMI, one DisplayPort, one DVI-I, and one VGA/RGB/YPbPr) and one HDMI out that supports scaled resolutions up to 4k x 2k 30hz. Each input also has audio inputs available via captive screw terminals and has a stereo output as well. The one-rack unit high scaling switcher can be controlled from the front panel, via RS232 or IP via the integrated GUI Control. The DV-MFSS-71 Seven Input Multi-Format Scaling Switcher integrates with FSR’s HuddleVU FLEX Collaboration Systems.
- DV-HSW4K-41 – The DV-HSW4K-41 is a 4×1 HDMI switcher that shares the same small footprint as its predecessor, the DV-HSW-41, but is capable of handling 4Kx2K. It can be controlled via front panel push-buttons or RS232. The DV-HSW4K-41 is part of FSR’s HuddleVU Collaboration Systems.
- DV-HSW-21A – The DV-HSW-21A is a 2×1 HDMI switcher capable of handling 4Kx2K resolutions in a small footprint. It has a locking 12v power supply and can be controlled via front panel push-buttons, contact closure, RS232 via Phoenix 3-pin, or auto-sensing. The unit provides LED feedback for contact closures and will work with FSR’s HuddleVU Table Boxes for a compact two HDMI HuddleVU System.
- DV-MFSW-21A – An HDMI + VGA & Audio to HDMI switcher, the DV-MFSW-21A is also capable of handling 4Kx2K resolutions in a small footprint, has a locking 12v power supply and can be controlled via front panel push-buttons, contact closure, or RS232 via Phoenix 3-pin, or auto-sensing. The
- DV-MFSW-21A provides LED Feedback for contact closures and will work with HuddleVU Table Boxes for a compact VGA & HDMI HuddleVU System.
- HD-HPC-SP-Tx – FSR’s new 100 Meter HDBaseT Slim-Pack HDMI & VGA with Audio Switcher Transmitter has both HDMI and VGA with audio inputs as well as bi-directional Control (IR & RS-232) and Ethernet. The switcher has built-in auto-sensing circuitry to determine the active input and also has a front panel Input Select Button and a captive-screw terminal on the rear for contact closure trigger. The
- HD-HPC-SP-Tx transmitter is a true HDBaseT 5-Play device that transmits HD Video (up to 4K @30hz.), audio, bi-directional control (IR & RS-232), Ethernet, and power via 1 CAT-6A shielded cable out to 100 meters. The HD-HPC-SP-Tx works with any of FSR’s other 100 Meter HDBaseT Receivers and can be powered from either end (Tx to Rx or Rx to TX). Bravo to FSR for actually doing 5-play!
- HD-HPCWP-Tx – FSR’s new 100 Meter HDBaseT two-gang Decora style wall plate transmitter is a true HDBaseT 5-Play device that transmits HD Video (up to 4K @30Hz), audio, bi-directional control (IR & RS-232), Ethernet and power via one CAT-6A shielded cable out to 100 meters. On the front of the wall plate it has an HDMI in and VGA Video In (HD-15 female) with audio In (1/8-inch Mini Jack), IR reader window, and input selector button. The HD-HPCWP-Tx is designed to work with any of FSR’s 100 Meter HDBaseT Receivers and receives its power from them as well. The rear of the wall plate contains Ethernet & HDBaseT RJ-45 Ports as well as captive screw terminals for IR-Out, RS-232, and +12v In & Out. The Ethernet and +12v Out have been designed to be used with FSR’s FLEX LT-200 3.5-inch Color Touch Panel with an integrated control system which can communicate back to your rack along with video, audio, and power all over 1 CAT-6A Shielded Cable up to 100 meters.
- The FLEX-IO16 I/O Interface Unit is a new addition to FSR’s Intelli-Tools line. It is a device that will provide 16 Ground Closure (switch) Inputs and 16 Lamp/LED Outputs as well as RS-232 & IP Communication to expand the control capabilities of FSR FLEX Controllers as well as interfacing with any third-party control system. The Serial & IP connections allow the IO-16 to function as an IP to Serial and Serial to IP translator/interface. The FLEX-IO16 I/O Interface Unit also has a GUI Control Program available that allows the set-up and programming of each of the 16 channels with its own command strings communicated during a button press, button release or button hold. It also controls the Lamp/LED feedback conditions for each of the 16 connections.
All of them can be found here.
