Extron Intros New 4K Presentation Matrix Switcher with Seamless Switching

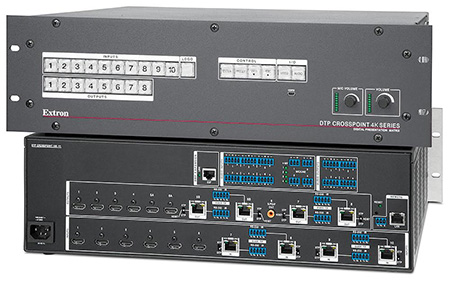

Extron has launched a new DTP CrossPoint 108 4K presentation matrix switcher. The DTP CrossPoint 108 4K includes a 10×8 matrix switcher with 4K inputs and outputs, four built-in 4K scalers (powered by Extron Vector 4K scaling technology) seamless switching and logo insertion, integrated DTP and XTP signal extension, audio DSP and AEC capabilities, a mono or stereo amplifier and an advanced control processor that is expandable.
The DTP CrossPoint 108 4K can immediately be integrated with the latest 4K sources and displays. Four built-in Vector 4K scalers are paired to the DTP outputs and enable independent scaling up to 4K. Extron says their new Vector 4K scaling engine is specifically designed with best-in-class image upscaling and downscaling, with 30-bit processing (most are 10-bit at best). The DTP twisted pair inputs and outputs provide flexibility in distributing AV and control. They can be used to connect to any display with an HDBaseT input, or tie into a centralized, facility-wide XTP System to add local room-based AV systems. Customize scaled outputs using the professional source transitions that are available, or insert a custom logo into the background or foreground.
The integrated audio DSP technology features all of the audio processing tools and capabilities of a fully equipped, professional outboard DSP (like the Extron DMP 128). The DTP CrossPoint 108 4K also includes four independent channels of high performance AEC for conferencing applications. A unique digital audio expansion port links the internal DSP to a DMP 128 for expanded I/O capacity to support additional microphones or speaker destinations. Additionally, the built-in mono or stereo 100 watt amplifier features the same Extron core technologies found in the renowned ENERGY STAR qualified XTRA Series, delivering high energy efficiency and professional grade audio performance.
DTP CrossPoint 108 4K IPCP models feature an integrated Extron IP Link Pro control processor, with the advanced features, processing power, and breakthrough technologies found in the standalone Extron IPCP Pro 350 control processor. This allows for complete, customizable control of an entire AV system. The purchase of an Extron LinkLicense with the DTP CrossPoint 108 4K IPCP allows a tablet or laptop to serve as the primary control interface for the AV system.
