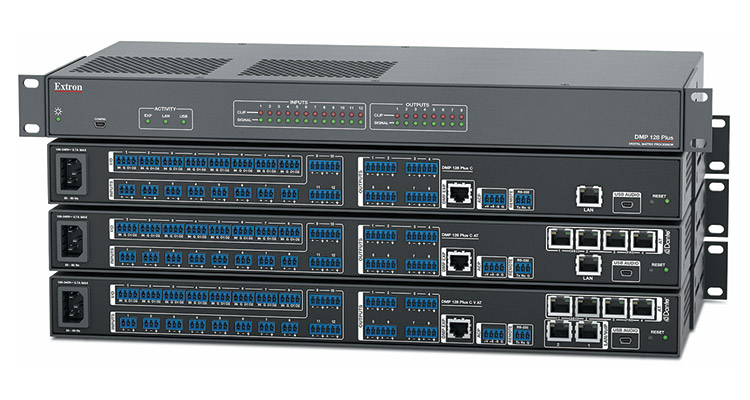

Extron DMP 128 Plus Audio DSP Processors with VoIP Now Shipping

Extron has announced the availability of two more DMP 128 Plus models, completing this line of powerful audio DSP processors. The DMP 128 Plus C V and DMP 128 Plus C V AT include up to eight VoIP lines, with standard and wideband codec support, that can be configured as individual extensions or with multiple call appearance channels to support local conferencing applications. Utilizing SIP 2.0 for the widest possible of compatibility with existing and new VoIP installations, a single V model of the DMP 128 Plus Series can be used as a multiple-line device with conference calling support on a single VoIP line. The DMP 128 Plus C V and DMP 128 Plus C V AT models offer network-specific VoIP configuration managed through a dedicated web interface, where real-time SIP transaction logs eliminate the need for network capture software. This segregation of VoIP configuration allows IT and network administrators to manage the VoIP functions of DMP128 Plus devices without the need to develop a detailed knowledge of audio DSP configuration.

The DMP 128 Plus Series is the next generation of Digital Matrix Processors featuring Extron ProDSP 64-bit floating point technology. DMP 128 Plus Series processors are equipped with 12 analog mic/line inputs, eight analog outputs, up to four channels of digital audio input and output via USB, up to eight audio file players and new configurable multi-device macros. An ACP bus makes it easy to connect one or more ACP Series audio control panels, offering an economical solution for audio system control.

Here are the detailed specs.
