Electro-Voice and Dynacord system unites multiple spaces at Faith Family Church

Faith Family Church 01

  • Ellis Pro Media was selected to integrate all AVL systems in the design/build
    of Faith Family Church’s first permanent home
  • Sound system for new 1400-seat sanctuary features Electro-Voice X-Line
    Advance X2-212 line arrays and X12-128 subs, augmented by EVF and EVH
    fills
  • Dynacord IPX amplifiers provide power and processing for sanctuary and multiple ancillary
    spaces via centralized Dante/OCA network, operated by SONICUE sound system software

Burnsville, MN, Oct 2020 – Since its start in 2013, Faith Family Church in Baytown, TX has
seen continued growth, quickly outgrowing its roots as a portable house of worship. Land was
acquired, a campus was planned, and a 60,000 sq. ft. facility with a 1400-seat sanctuary was
opened in early March 2020. The integration of the church’s audio, video and lighting systems
across the main auditorium and several ancillary rooms was handled by worship AV specialists
Ellis Pro Media, a Continuant company.

“This was a design-build, and great client to work with,” says Austin Hess of Ellis Pro Media.
“We knew that Electro-Voice would be a great solution, especially paired with the new Dynacord
IPX series amplifiers. It’s a product we wholeheartedly believe in, to the point where many of the
designers and staff at Ellis Pro Media have EV products in the churches we attend.”

A carefully chosen combination of EV loudspeaker models ensures a consistently high level of
sound quality in spaces across the campus. The loudspeakers are powered by Dynacord IPX
amplifiers configured as a centralized Dante/OCA audio/control network, and operated by
SONICUE sound system software. “This is the first X2 rig we’ve deployed using SONICUE for
processing,” says Hess. “It allowed us to be up and running more efficiently than in the past,
and both our team and the client appreciated that.”

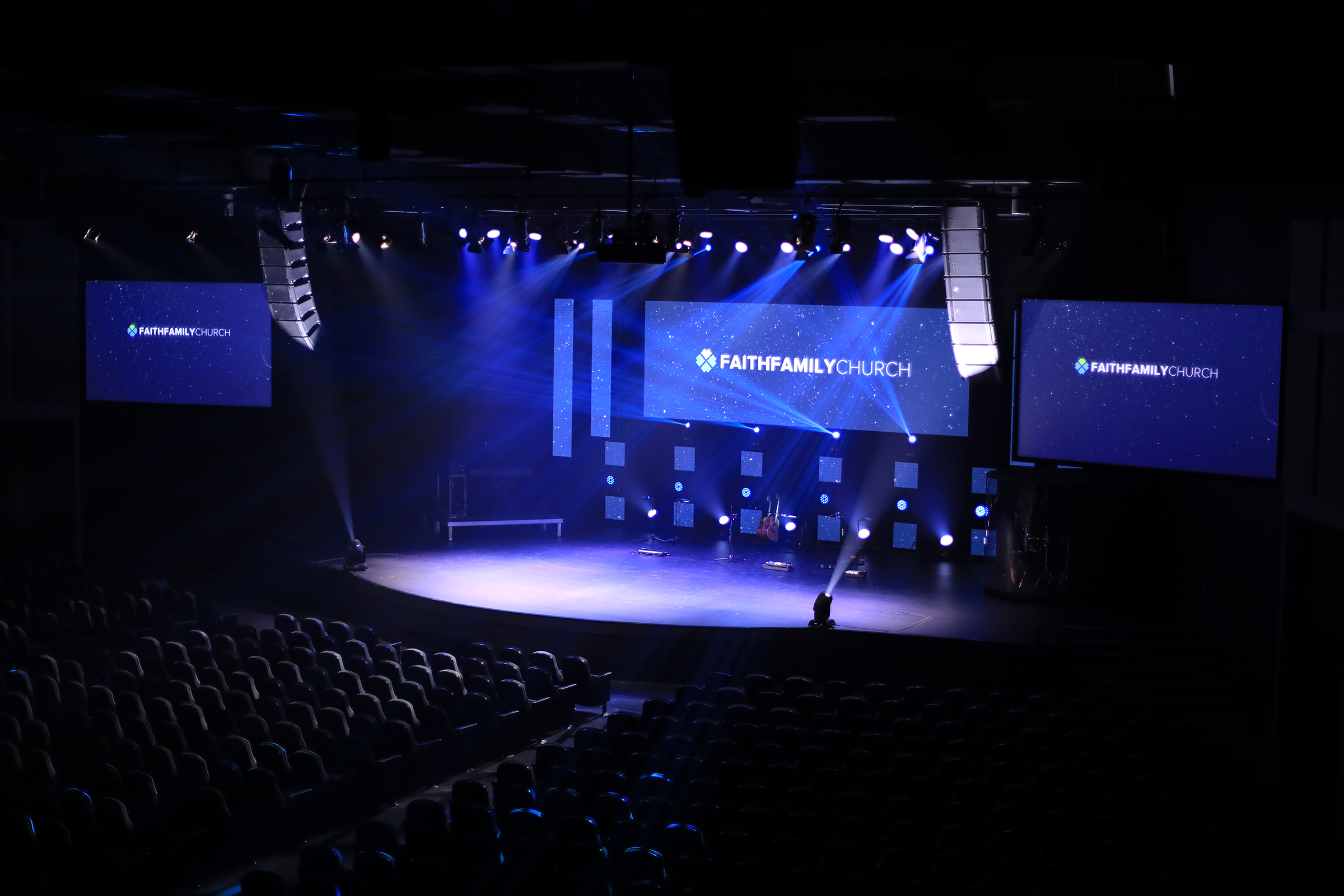

The main system in the sanctuary consists of twin X2 line arrays; six with a 90° horizontal
dispersion above two 120° models. These are augmented by two EVF-1122D/126 loudspeakers
for front fill and three EVH-1152/96 horn-loaded models as rear delay fills. Eight X12-128 dual-
18” subwoofers provide low-frequency support. Five IPX20:4 amplifiers power the mains and
subs; a single IPX10:8 powers the fills. Hess considers the X12-128 subwoofer to be a secret
weapon behind EV’s superb, seemingly effortless LF fidelity. “These subs give you everything
you want in terms of output and tonality, with such a small footprint,” adds Hess. “Add the way
they maintain musicality at high output, and in my opinion they perform as well – if not better
than – any other premium sub on the market.”

The Children’s Auditorium features a left-right pair of EVF-1122D/126 loudspeakers with a
single flown EVF-2151D sub, while coverage in the Pre-school Auditorium is provided by two
EVU-2082/95 ultra-compact models. The multipurpose Next Steps Room uses two EVC-
1122/95 compact loudspeakers as mains, paired with EVC-1181S flown
subwoofers. One IPX10:4 and one IPX5:4 provide the power and processing to
these systems. A pair of EVC-1122/64 loudspeakers powered by a separate
Dynacord C3600FDi amplifier provide coverage for a fifth/sixth grade
classroom. Four EKX-12P portable powered loudspeakers are available for stage monitor use.

When Faith Family Church held its first live-attendance services since closing due to COVID-19,
with CDC social distancing guidelines in place, the new system delivered. “They are grateful to
be getting back to live worship in the new sanctuary,” says Hess. “I’d almost forgotten how great
the X-Line Advance system sounds – everyone agreed it was an amazing experience.”

Electro-Voice loudspeakers:
12x X2-212/90 (12” line-array, 90°)
4x X2-212/120 (12” line-array, 120°)
8x X12-128 (dual-18” subwoofer)
3x EVH-1152D/96 (15” two-way horn-loaded, 90° x 60°)
4x EVF-1122D/126 (12” two-way, 120° x 60°)
1x EVF-2151D (dual-15” subwoofer)
2x EVC-1122/95 (12” two-way compact, 90° x 50°)
2x EVC-1122/64 (12” two-way compact, 60° x 40°)
2x EVC-1181S (compact 18” subwoofer)
4x EKX-12P (12” two-way portable powered)
2x EVU-2082/95 (dual-8” two-way ultra-compact)
Dynacord electronics:
5x IPX20:4 (4x 5000 W)
1x IPX10:8 (8x 1250 W)
1x IPX10:4 (4x 2500 W)
1x IPX5:4 (4x 1250 W)
1x C3600FDi (2x 1800 W)
SONICUE sound system software
