DiGiCo Announces New Large-Format Live Audio Production Mixing Consoles

digico quantum852

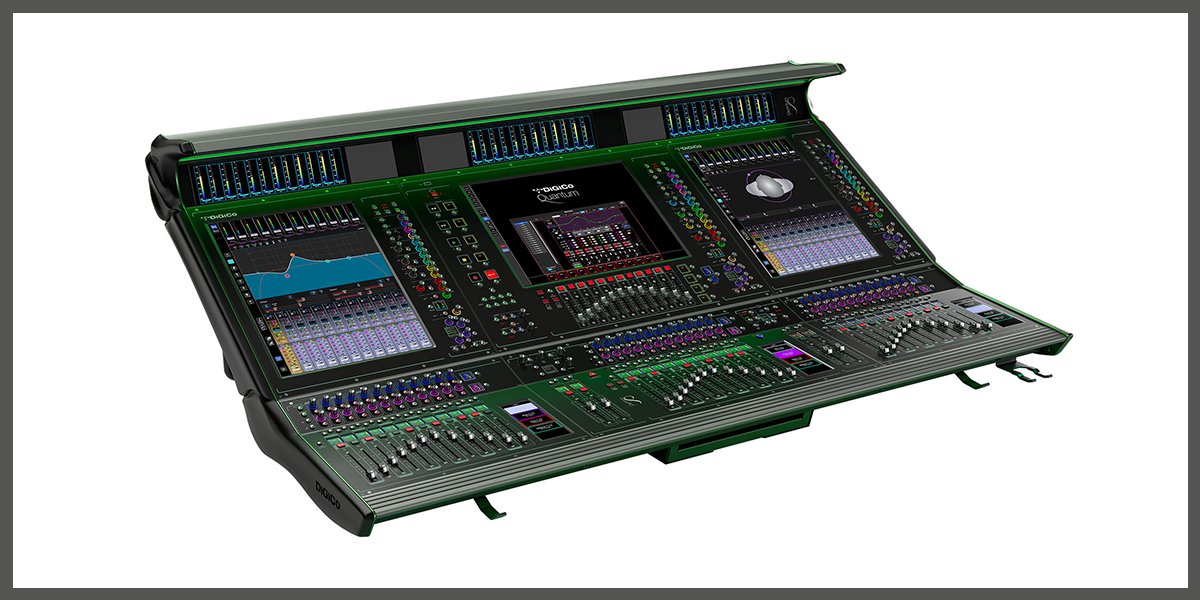

DiGiCo launched of the next generation of large-format live audio production mixing consoles. The Quantum852 is packaged with 1000-nit LCD screens for full daylight operation and a newly designed worksurface, giving users the confidence that, true to the DiGiCo ethos, Quantum852 has been designed not just for now, but for the future.

But, DiGiCo says the Quantum852 also includes a raft of eco credentials. Its lightweight alloy construction reduces weight, which in turn helps mitigate its environmental impact during transportation. It has a reduced operating power, thermal cooling fans along with convection cooling, and temperature-dependent cooling. Further reducing Quantum852’s environmental footprint is the inclusion of sustainable and recyclable materials.

Quantum852’s tech spec is equally impressive. Featuring fully redundant processing, each engine is powered by five of the latest seventh-generation FPGAs and next-generation SHARC DSP processors. Quantum852’s input count increases to 384 mono channels, with 192 Aux / Sub-Group busses, plus the familiar LR / LCR / 5.1 Master busses. It comes with a 64 x 64 Processing Matrix, 36 Control Groups, two Solo busses and 64 FX Rack slots. There are 48 Graphic EQs, 384 Nodal Processors, 128 Mustard Processors and 32 Spice Racks.

The so-called “magic” continues with the Ultimate “Stadius” modular LOCAL I/O, with each of the three cards providing four Stadius Mic-Pres, four Stadius Line Outputs and two Bit Perfect AES I/O. On the back of each engine are eight single or four redundant BNC MADI ports, Word Clock, AES Sync and Video Sync inputs, Dual USB 2.0 sockets, a SuperSpeed USB 3.0 socket, 4k DisplayPort Overview Out, 5-Port 1Gbps network switch, Dual DMI slots, Waves SoundGrid port and Optocore inputs as standard, with space for an optional second Optocore loop.

See related  DiGiCo Announces Pulse Software Updates for Quantum338, Quantum338T, and Quantum225 Consoles

The three 21.3-inch, all-new daylight-bright screens ensure there will never be a situation where viewing is difficult. There are also three 19.2-inch dedicated meter bridge screens, three dedicated 6.8-inch control screens for bank and layer switching, and 69 1.3-inch worksurface screens, all of which are touch sensitive for channel selects and solos, ensuring instant access and control.
