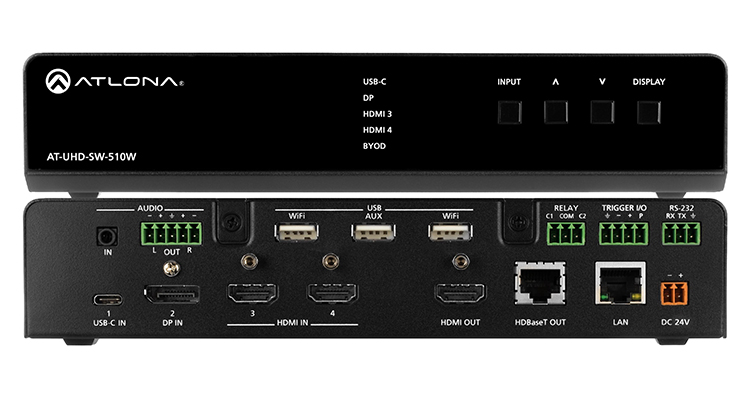

Atlona Ships New BYOD Solution in AT-UHD-SW-510W Switcher

Atlona is now shipping the AT-UHD-SW-510W 5×1 universal switcher with wireless presentation capabilities. Aimed at the bring-your-own-device (BYOD) movement in corporate, educational and other commercial AV environments, the SW-510W claims to simplify system design, integration, and operation by supporting both wired and wireless AV connectivity in a single, compact unit. For local wired sources, the new switcher features one DisplayPort and two HDMI inputs alongside a USB-C input.

For wireless presentations, the SW-510W interfaces natively with iOS, Android, Mac, Chromebook and Windows devices over built-in Wi-Fi capabilities, and offers screen mirroring without requiring the installation of an app. The SW-510U can automatically switch between input sources based on the connection or disconnection of a wired or wireless AV device, providing exceptional ease of use.

On the output side, simultaneous HDMI and HDBaseT interfaces enable multi-destination presentation architectures such as concurrent primary audience and confidence displays, while the HDBaseT output can be paired with Atlona’s AT-UHD-EX-100CE-RX-PSE receiver to extend video, audio, control and Ethernet up to 100 meters. The SW-510W supports wired video signals up to 4K/UHD@60 Hz, plus support for 4K/60 4:4:4 and HDR (8-bit color at 60 Hz) formats on local ports (HDMI, USB-C and DisplayPort) and wireless video up to 1080p/30 (up to 1080p/60 with Miracast). The switcher is HDCP 2.2 compliant for compatibility with protected content.

Here are all the specs.
