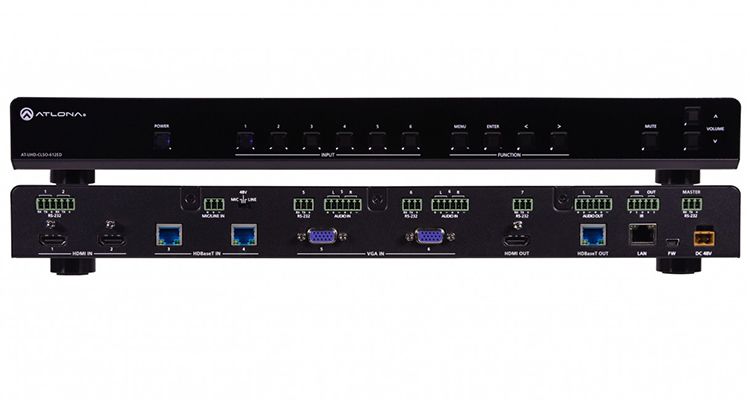

Atlona’s new 4K/UHD AV switcher, the AT-UHD-CLSO-612ED, is a six-input switcher featuring built-in 4K scaling (up to 30Hz 4:4:4), mirrored HDBaseT and HDMI outputs and AV signal extension up to 100 meters.
Featuring display control and automatic input selection, the new switcher can act as a central component for a fully automated boardroom or classroom AV system. The UHD-CLSO-612ED is equipped with two HDBaseT inputs, two HDMI inputs, two multi-function analog inputs, and an audio input to give integrators the ability to meet wide-ranging AV needs with a single integrated component.
The CLSO-612ED is designed for classroom and small office integration and can scale any source to any display and output at 2840×2160 resolution image. The switcher is designed to work with the Atlona AT-UHD-EX-100CE-TXHDBaseT transmitter and the AT-HDVS-200-TX switcher as remote inputs for sources placed on lecterns, conference tables, or any location within 100 meters using CAT6a/7 cable. In addition, an HDBaseT output is provided for remote displays to extend AV and control signals up to 100 meters using an AT-UHD-EX-100CE-RX Ethernet-enabled receiver.
The AT-UHD-CLSO-612ED utilizes PoE technology to power compatible HDVS Series switchers connected to its inputs and to power an HDBaseT receiver connected to its output, eliminating the need for AC outlets to power remotely-located extender devices and streamlining installation of displays.
The switcher features automatic display control, which can eliminate the need for control systems in small AV systems. Basically, the switcher automatically turns on the display (using CEC) whenever a source is connected and enables remote operation.
