Atlona Ships HDVS-200 Series Switcher and Scaler with HDMI and VGA over HDBaseT
Atlona started shipping its HDVS-200 Series of auto-switching extension and scaling products for Ethernet-enabled HDMI and VGA content via HDBaseT. There are two new models, the three-input AT-HDVS-200-TX switcher/transmitter and AT-HDVS-200-RX receiver/scaler.
Used in tandem for huddle space systems, the HDVS-200 Series components offer an extensive array of AV system features, including auto switching for HDMI and VGA inputs, automatic projector on/off control, automatic display control of professional monitors and consumer TVs, volume control and de-embedding of analog audio. The devices support remote control via TCP/IP, RS232 and Consumer Electronics Control (CEC). The switcher receives power from the AT-HDVS-200-RX scaler via Power over Ethernet (PoE), and together they create a standalone AV switching system for classrooms and huddle rooms.
The HDVS-200 Series devices are powerful solutions when used separately as input/output components in larger systems. Both models can be remotely managed by the Atlona Management System software, which integrates product configuration, management and updating.

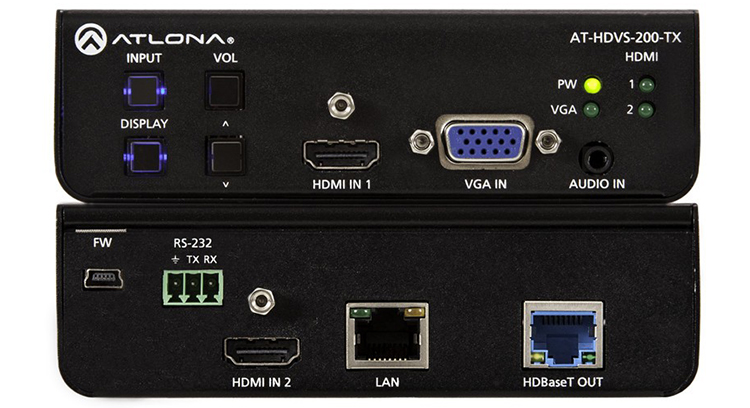

The AT-HDVS-200-TX switcher features two HDMI inputs and a VGA input with a 3.5 mm audio connector, and it extends video signals up to 4K/UHD @ 60 Hz with embedded audio to a distance of 328 feet (100 meters). It can be used as an input device with several Atlona matrix switchers, e.g. AT-UHD-CLSO-824, enabling one HDBaseT input on a matrix to handle three auto-switched sources.
Atlona’s AT-HDVS-200-RX is an Ethernet-enabled HDBaseT receiver for AV transmission and scaling of video signals up to 1080p @ 60Hz. In addition to pairing with the AT-HDVS-200-TX, it works well as a remote output scaler for the AT-UHD-CLSO-824 matrix switcher or AT-UHD-SW-52ED switcher. When used with these switchers, it receives IP and HDMI signals with embedded audio and control signals across distances of up to 328 feet (100 meters). Ports for TCP/IP and RS232 connections provide flexible options for third-party control systems.
The AT-HDVS-200-TX switcher and AT-HDVS-200-RX scaler are $599.99 and $699.99, respectively. Detailed specs are here.
