Artcoustic Launches Performance Series

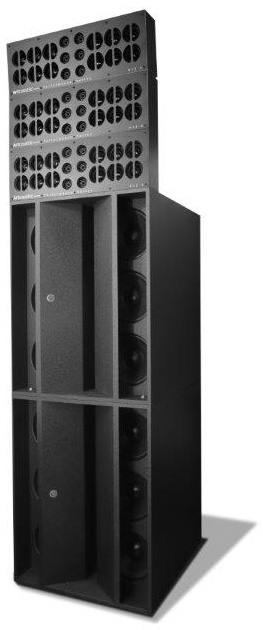

artcoustic-performance-0115The Performance Series is a stacked design of speakers that are capable of 140 dB sound pressure level. It’s designed for applications such as medium to large size cinema rooms, fixed installation public address systems and extending even further towards the demanding club stack market. The Performance Series includes two models:

Performance P12-6 mid-high array speaker: This model can be used as a single sound reinforcement speaker, or mounted as multiples with adjustable angles. It is also ideal either wall mounted or ceiling mounted as surround and overhead speaker in larger sound pressure level demanding cinema applications. Here are it’s specs:

Transducer:

  • LF-MF 12 x 3 inch cone, Symmetric Phase Aligned
  • HF 6 x 1 inch Dual Ring Radiator, Symmetric Phase Aligned

Performance:

  • Operating Range 55 Hz (-3dB) to 20 kHz
  • Nominal Beam width Horizontal 80° Vertical 45°
  • Axial Sensitivity (half space SPL) LF/MF-HF 106 dB
  • Calculated Axial Output Limit (half space SPL) Average Peak LF/MF-HF 126dB @ 40watt
  • Dimensions H: 250 W: 700 D: 100 mm

Performance Subwoofer PS6: The PS6 is a multi-drive unit coupled, high sound pressure level and very low f3 point (15Hz) subwoofer, making it suitable for the most demanding applications. The PS6 can be used as a single subwoofer for typical sub-sat applications, or as a more powerful stackable solution, catering for larger cinema installations and the demanding high output club and public address scene.

Here are its specs:

Transducer:

  • LF 6 x 10 inch cones

Performance:

  • Operating Range 20 Hz (-6dB) to 400Hz
  • Axial Sensitivity (Half space SPL) LF/MF-HF 108 dB
  • Calculated Axial Output Limit (half space SPL) Average Peak LF 136dB @ 370watt
  • Dimensions H: 900 W: 700 D: 700 mm

Here are more details.
