18Gbps Wall Plate Product Launch

image 55

Flexible and comprehensive professional HDMI and RGBHV Wall plate extender with HDBaseT CAT 6/6A distribution system for Commercial, Education and Residential use

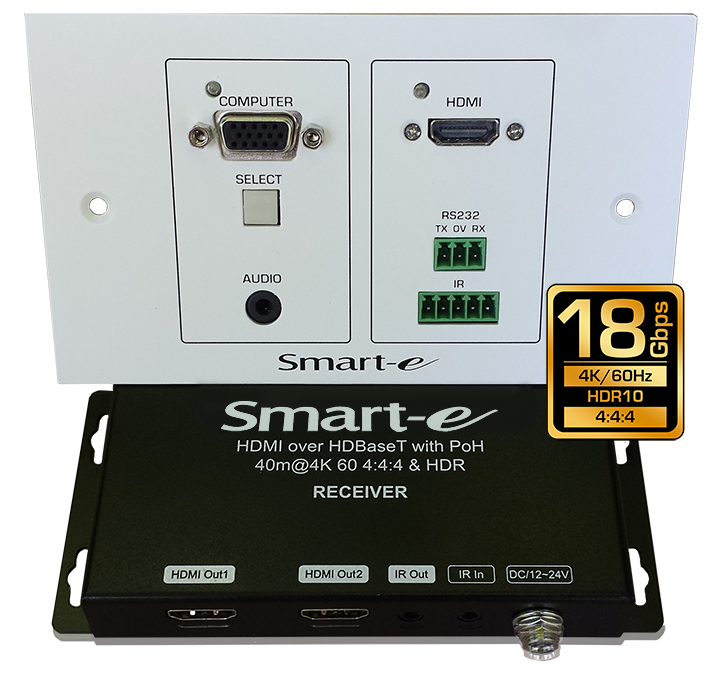

444K-912 Wall Plate Extender Pair
  • Double Gang UK
  • 70m CAT6 cable
  • HDMI 2 4K@60Hz
  • 4:4:4 SubSampling
  • HDBaseT Lite
  • CEC compliant
  • Wall Plate TX
  • Single CAT cable
  • HDCP 2.2/1.3
  • 18Gbps & HDR10
  • Bi-directional RS232/IR
The 444K-912 is a versatile product covering a multitude of applications ranging from Meeting/Huddle Rooms, Classrooms, School Assembly Halls and Home Cinemas
  • UK size wallplate
  • HDMI and VGA input
  • Priority switching
  • Remote powered
  • Button source selection
  • Compact receiver
  • HDMI output
  • Locking DC connector
  • Mounting bracket
  • Dual mirrored outputs
The 444K-912 is ideal for integrating simple AV presentation applications into many room scenarios. The Wall Plate is capable of accepting both legacy and current video formats in a single compact convenient package.

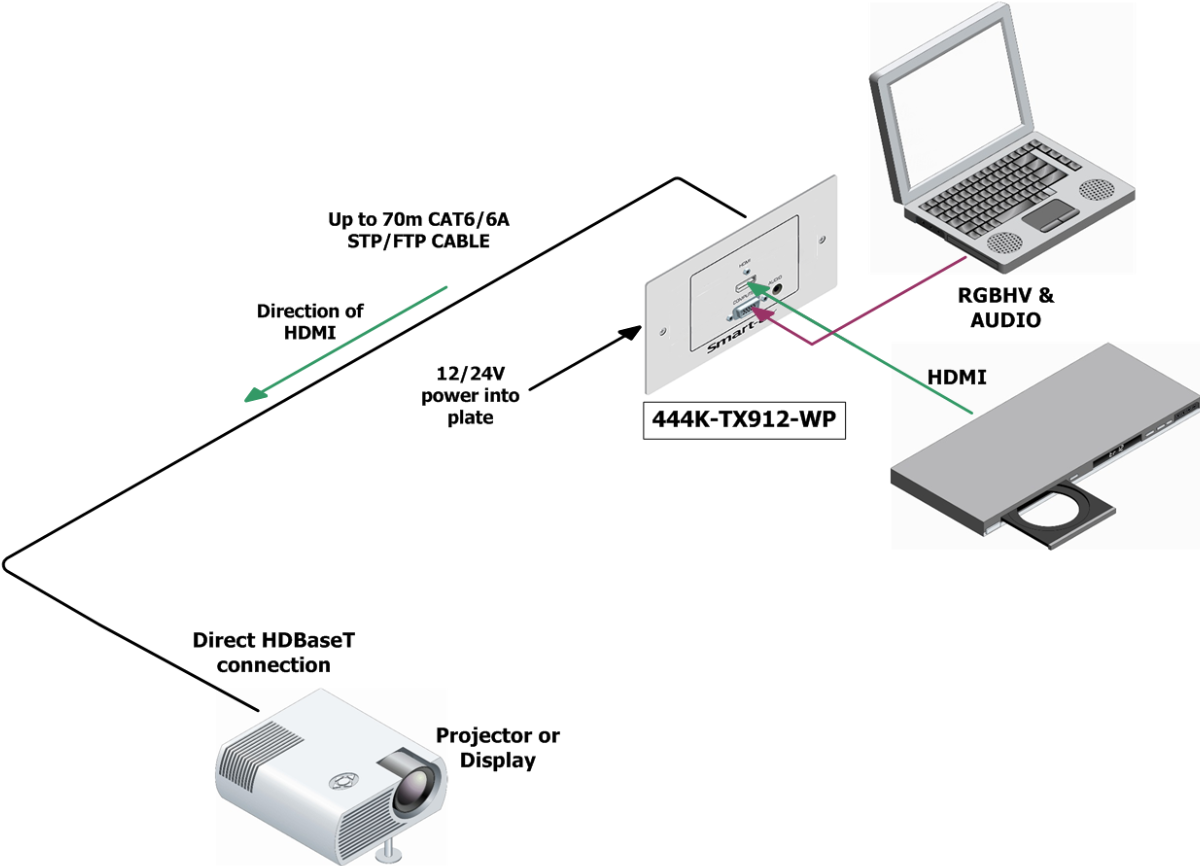

The 444K-TX912-WP can also be used for direct connection to a display or projector with a HDBaseT input

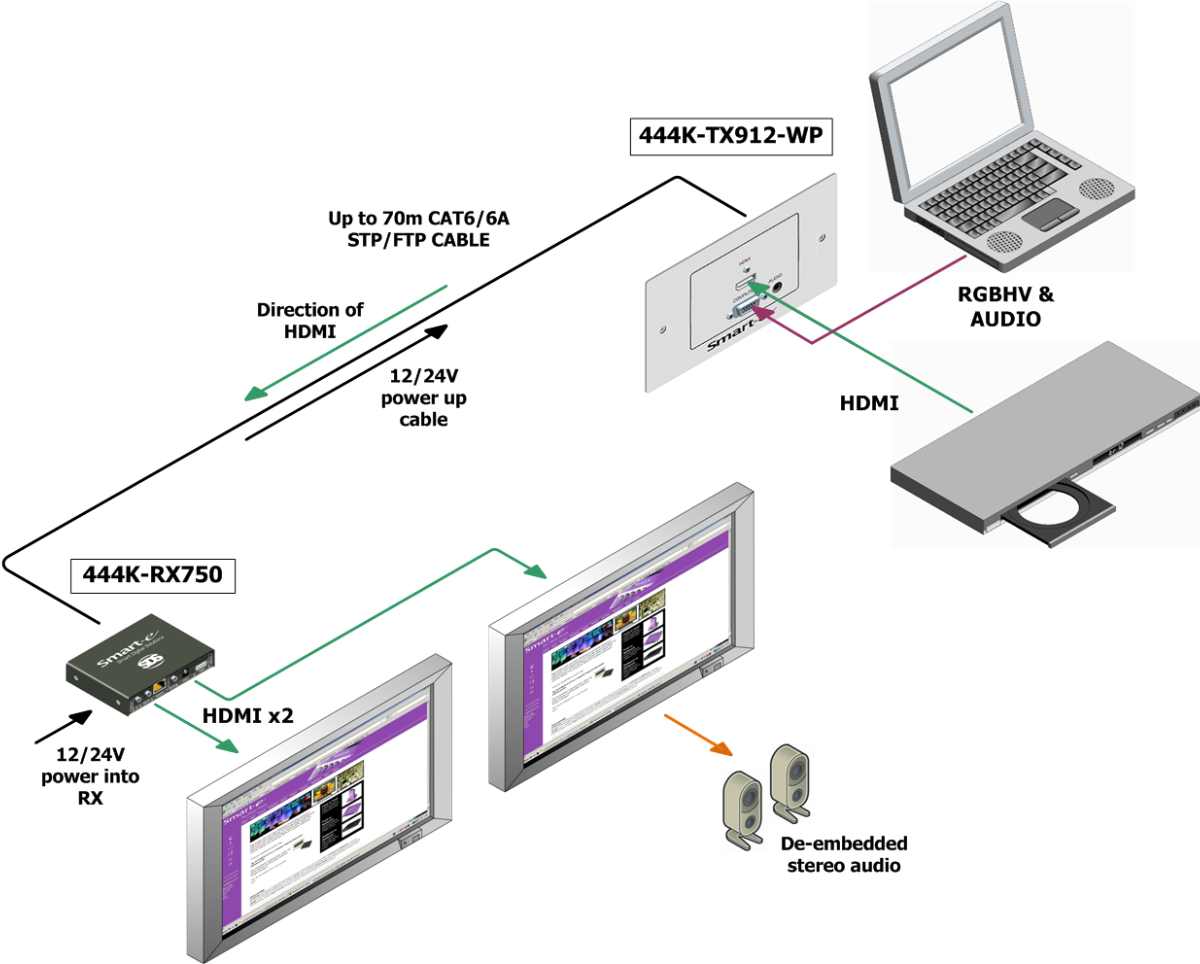

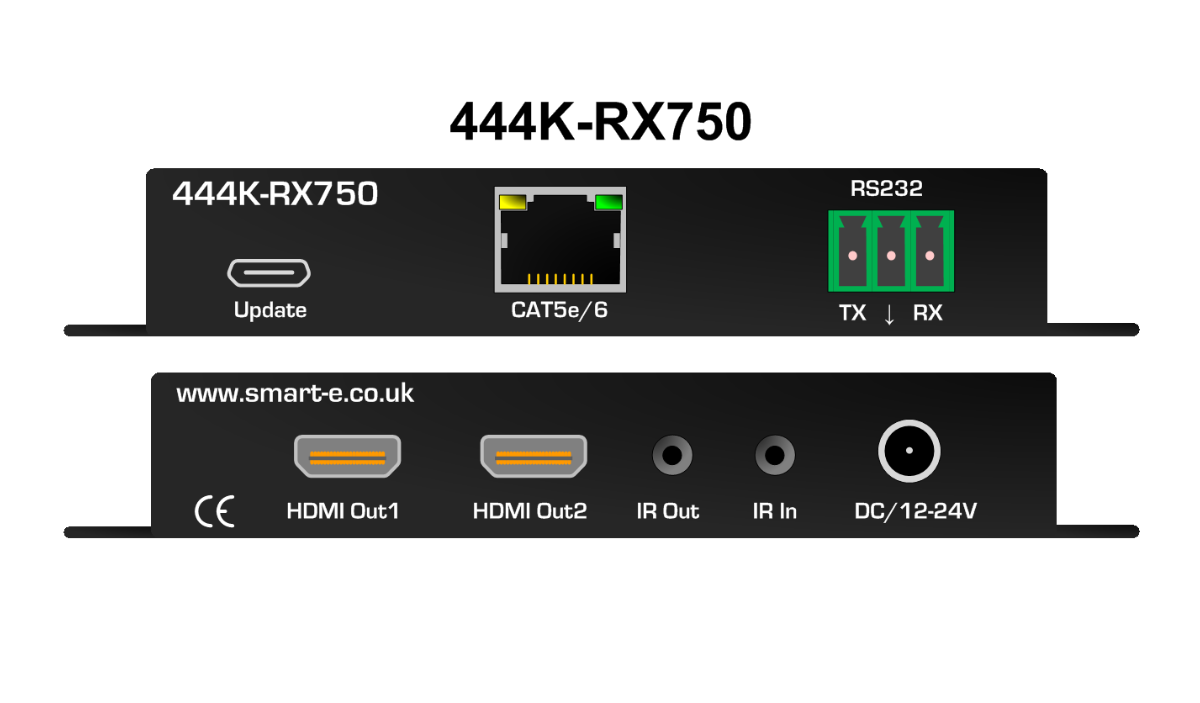

Or for more traditional connectivity the 444K-912 is used as a pair with the power provided by the receiver 444K-RX750
