NEUTRIK Debuts 10-Pin XLR Connector

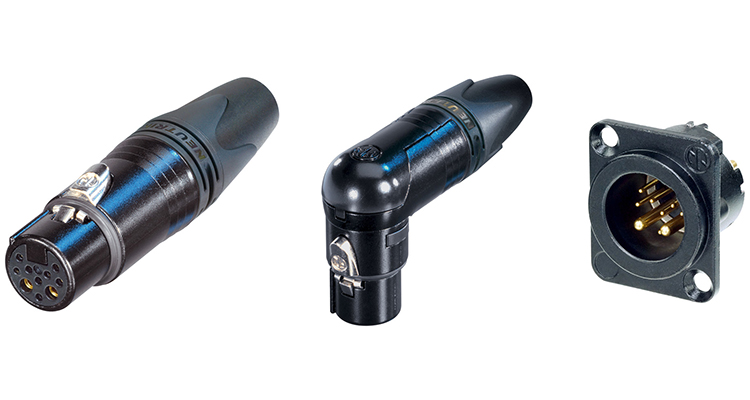

neutrik-nc10fxx-1015Neutrik’s latest multi-pin product line for transmitting both data and power:  the 10-pin XLR line. Fitting in the same form factor as other XLR connectors, Neutrik’s 10-pin XLR is perfect for transmitting four twisted pairs of data at Cat 5e performance plus up to 16A of power @ 50V using two large, dedicated power pins.

The cable connectors for the new 10-pin XLR line are based on Neutrik’s latest-generation XX series. The chassis connectors are derived from Neutrik’s DLX family, offering industry-standard D-size housings and superior RF protection and shielding as a result of the DLX connectors’ innovative duplex ground contact design.

With this new XLR design, Neutrik’s 10-pin XLR line offers an easy-to-assemble and rugged multi-pin connection solution.

The parts numbers for the straight and right angle cable connectors are:

  • NC10FXX-14-B
  • NC10MXX-14-B
  • NC10FRX-14-B
  • NC10MRX-14-B

The chassis connectors are identified as:

  • NC10FD-LX-B
  • NC10MD-LX-B

Here are the details.
