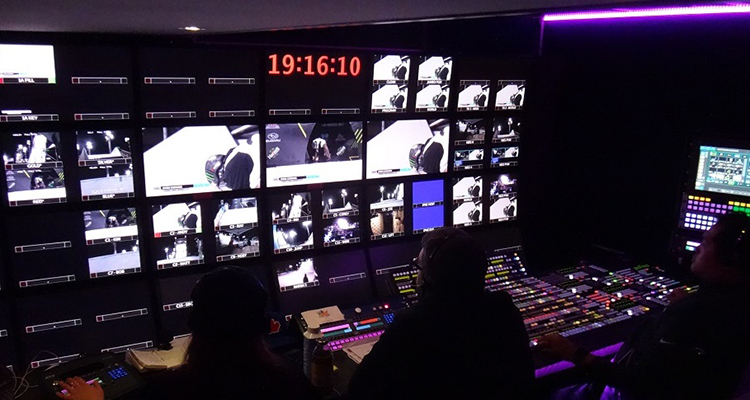

The mobile unit is IP-ready and equipped with 24 Boland 4K monitors in the main control room monitor wall — driven either as quad splits or single input 4K monitors from the main router — giving total flexibility in HD or 4K. It also features 16 Sony HDC-4300 4K/HD cameras with the capability to add an additional six RF cameras or a further four Sony HDC-4300s. Hitachi SK-HD1200 camera systems will be deployed for applications outside of 4K.
Columbus’ master systems control (VSM) gives operators ultimate control, and maximum flexibility, with Wi-Fi tablets available to control and assign sources and monitoring in the various operational areas, including the monitor wall. This facilitates the initial set-up of the unit for production and allows the operators to very easily make changes during production with just “one touch,” rather than having to re-route video, audio and control features independently.
Additionally, Columbus utilizes a Grass Valley Karrera K-Frame S-series switcher along with four 12-channel EVS ChannelMAX live-production servers. An Imagine Communications Platinum IP3 router is supported by a Lawo VSM control and monitoring platform. Audio is supported via a Lawo mc256 (64 fader) audio mixer and communications are managed using the new RTS Adam matrix intercom. Wireless communication is supported via a Clear-Com Eclipse Delta frame running FreeSpeak II allowing point-to-point four-wire beltpack usage.

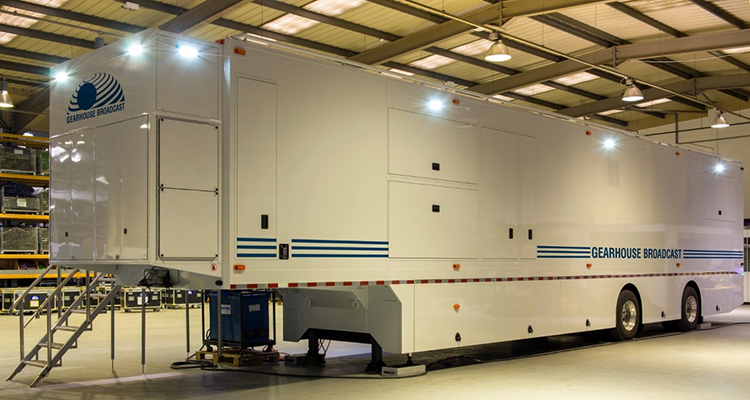

Columbus was built by A Smith of Great Bentley (ASGB Ltd). Its layout features adjustable monitors in the main control room, as well as over-specified air conditioning that is both efficient and quiet. Operators have the ability to change level and color of the interior lighting scheme as well.
Here are all the specs.
