beyerdynamic Intros the TG 500 Wireless System

beyerdynamic, Inc will be debut the TG 500 at InfoComm in the Audio Pavilion, Booth 5775. The TG 500 is a wireless system that is value priced. It’s designed for performances on smaller stages, theatre productions, speeches or presentations.

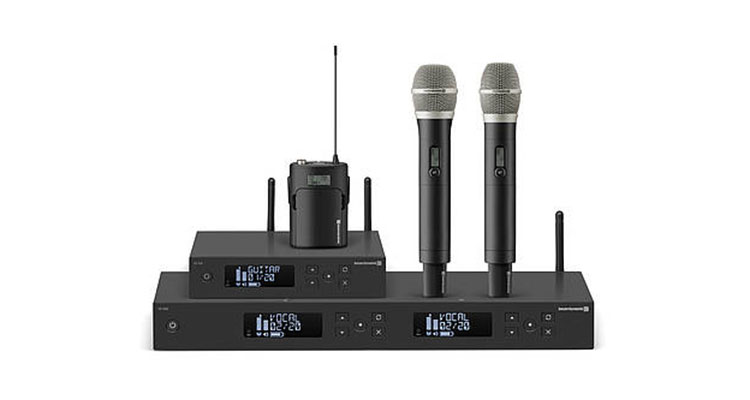

The beyerdynamic TG 500 system is available in five sets, each of which contains an individual receiver and two removable antennas. The TG 550 Vocal Set is supplied with the dynamic TG 500H-D handheld transmitter with a TG V50 capsule (dynamic capsule, cardioid) and is perfect for singing, whereas the TG 556 Vocal Set comes with a TG 500H-C handheld transmitter with a TG V56 capsule (condenser capsule, cardioid), making it a solution for presentations. There are matching microphone clamps for both handheld transmitters. The TG L58 clip-on microphone (condenser, omnidirectional) from the TG 558 Presenter Set can be worn in an inconspicuous position during lectures, while the TG 534 Headworn Set with a TG H34 neckworn microphone (condenser, supercardioid) is the perfect choice for theatre productions. Electric and bass guitars can be miked using the WA-CGI instrument cable (6.35 mm mono jack), which is part of the TG 510 Instrument Set.

With an operating range of up to 393 feet, the beyerdynamic TG 500 switching bandwidth is up to 40 MHz, and when all four frequency bands (518-548 MHz, 606-636 MHz, 794-832 MHz and 1.780-1.810 MHz) are used, up to 72 channels (18 compatible frequencies per band) can be operated simultaneously, thus making the TG 500 system suitable even for larger installations. Each of the five TG 500 sets is available for use in one of four frequency bands, so there are 20 different sets to choose from in total.

At the heart of every beyerdynamic TG 500 set is a receiver with a metal enclosure and a parametrised front panel. The frequency response of the system ranges from 45 to 15 kilohertz. A balanced XLR output and a balanced jack are provided as analogue audio ports. The individual receiver takes up a single height unit in the 19″ installation; the rack assembly kit supplied allows two 9.5″ devices to be installed in one rack.

A dual receiver in 19″ format (1 HU) featuring an integrated power supply and a built-in antenna splitter is also available within the TG series. The dual receiver supplies the antenna phantom power required for using remote antennas. Intermodulation-free transmission frequencies are also provided in preconfigured groups to ensure interference-free multi-channel operation. Frequencies can also be freely allocated. A scan function with automatic search provides assistance for system set-up. The integrated pilot tone function ensures interference-free transmission and gives a warning when the battery power is running low.

The handheld transmitters from the new TG 500 series can be switched between 10 mW and 50 mW. Settings are simple to configure on the receivers and are relayed to the transmitters by means of infrared synchronization. All transmitters are equipped with an LCD display. The handheld transmitters feature a mute button at thumb level on the microphone shaft, and the pocket transmitter has a programmable mute button on the top.

Here are all the specs.
