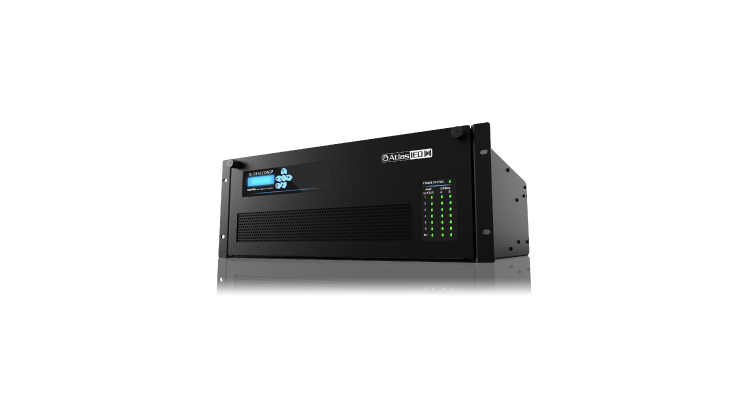

AtlasIED Debuts TitanONE T112 Smart Mainframe Power Amplifier

AtlasIED just debuted new TitanONE T112 smart mainframe power amplifier, providing the latest signal automation, processing, and amplification technologies in one modular solution. The TitanONE T112’s modular design allows up to seven TitanONE series power amplifier cards (sold separately) to be easily inserted into the mainframe. This offers twelve main channels of amplification, two backup channels for redundancy, and each channel has a complete library of DSP filter options. The TitanONE T112 is networkable offering IEDNet+ IP-based system control and digital audio transport via Dante.

The T112 meets the stringent standard requirements for life safety and mass notification systems. It is UL 864/1711 and UL 2572 listed, and it can be easily incorporated into any life safety system. The T112 also can enter “Power-Save Mode” via contact closure or over the network. In this mode, all the power amplifiers are switched off unless needed for an emergency message. This saves battery or backup power supply drain when the main power is lost.

The T112 mainframe with DSP can provide up to twelve main channels of amplification and two backup channels for redundancy. Six of the amplifier cards function as primary cards to drive connected loudspeaker circuits. The seventh card functions as a redundant backup that is automatically engaged in the event of a card failure. The T112 modular mainframe can also support dual-channel line output cards T2LD-120V & T2LD-230V to drive external systems or to provide processing for self-powered loudspeaker arrays.

The T112 digital signal processing provides twelve individual channels. If an amp card fails, the processing is automatically switched to the backup ampli er card. Each processing channel includes level controls, page routing, automatic ducking of background music, equalization (up to eight parametric bands per amplifier channel plus high-pass lter), signal delay, and patented technology for ambient analysis-based automatic level control. Other signal processing includes matrix mixing of available inputs and compression on analog inputs.

See also  Yamaha Microphone Control in the NEXUS System

Being fully networkable, the T112 incorporates dual 1GB network ports for primary and backup network connections. The T112 supports IEDNet+, an Ethernet-based system control protocol providing software-based routing, control and supervision of AtlasIED devices.

Here are all the specs.
